Brand??TPLINK
Category??Wireless Router

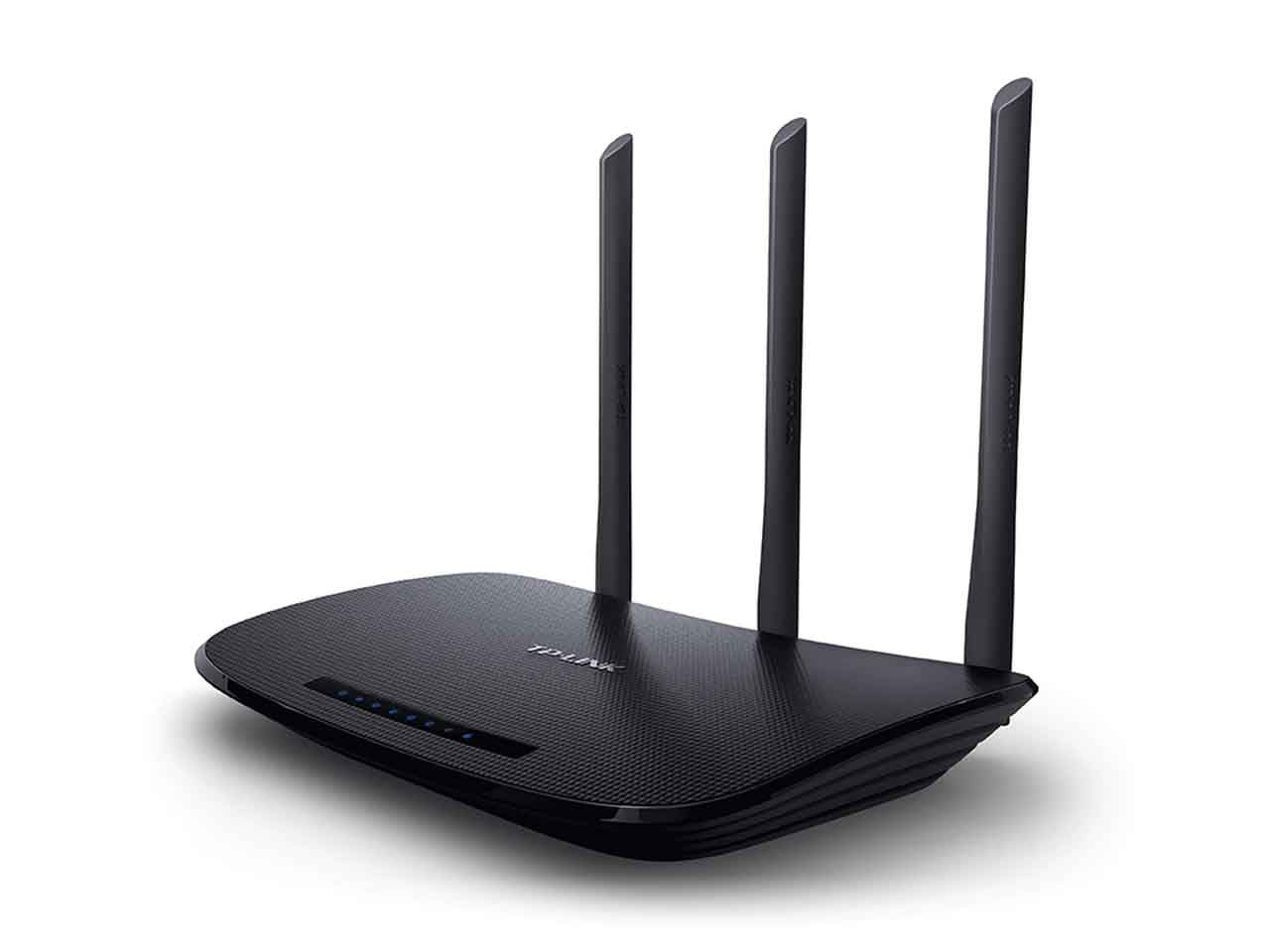

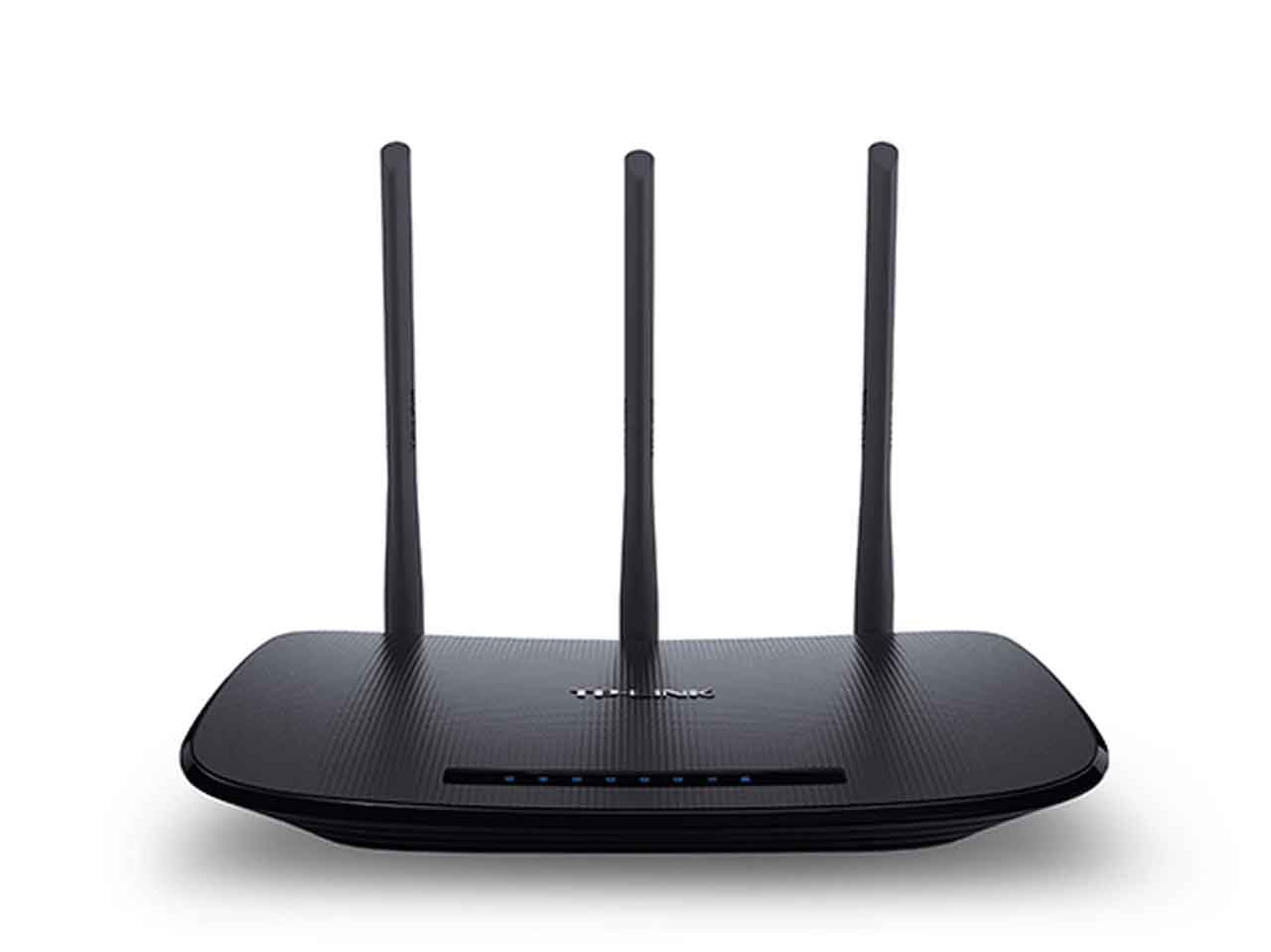

Model??number??TPLINK 450Mbps Wireless N Router TL-WR940N

• 450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
• Three antennas increase the wireless robustness and stability
• Easy wireless security encryption at a push of WPS button
• IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
• 450Mbps wireless speed is only for TL-WR940N??V3??while the earlier version is 300Mbps.

Specification??

HARDWARE FEATURES
Interface	4 10/100Mbps LAN PORTS 1 10/100Mbps WAN PORT
Button	Wireless On/Off Button,WPS/Reset Button, Power On/Off Button
External Power Supply	12VDC / 1A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna	3*5dBi Fixed Omni Directional Antenna

WIRELESS FEATURES
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 450Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Transmit Power	CE: <20dBm(2.4GHz) FCC: <30dBm
Wireless Modes	Router Mode, Range Extender(for V5 and later), Access Point Mode (for V5 and later)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control
WAN Type	Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management	Access Control Local Management Remote Management
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comexe, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec (ESP Head)
Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Protocols	Support IPv4
Guest Network	2.4GHz Guest Network??1

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-WR940N Power supply unit Resource CD Ethernet Cable Quick Installation Guide
System Requirements	Microsoft?? Windows?? 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10 MAC?? OS, NetWare??, UNIX?? or Linux
